ASYMFMLM-R2-10
Silicon probe with visible tip apex and magnetic coating for low moment MFM applications.
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| ASYMFMLM-R2-10 | k:2.8N/m; f:75kHz; Tip Radius:20nm; - MAGNETIC FORCE MICROSCOPY; Reflex coating:Co/Cr; Tip coating:Co/Cr; Si probe;10/box  |
each | $570.00 |
ASYMFM-10
Silicon probe with visible tip apex and magnetic coating for standard MFM applications.
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| ASYMFM-10 | k:2N/m; f:70kHz; Tip Radius:47nm; - MAGNETIC FORCE MICROSCOPY; Reflex coating:Co/Cr; Tip coating:Co/Cr; Si probe;10/box |
each | $570.00 |
ASYELEC.01-R2-10
Asylum electrolever tip with conductive coating for nano-electrical measurements.
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| ASYELEC.01-R2-10 | k:2.8N/m; f:75kHz; Tip Radius:25nm; - CONDUCTIVE AFM; Reflex coating:Ti/Ir; Tip coating:Ti/Ir; Si probe;10/box |
each | $380.00 |
ASYELEC.02-R2-10
Asylum electrolever tip with conductive coating for nano-electrical measurements.
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| ASYELEC.02-R2-10 | k:42N/m; f:285kHz; Tip Radius:25nm; - CONDUCTIVE AFM; Reflex coating:Ti/Ir; Tip coating:Ti/Ir; Si probe;10/box |
each | $380.00 |
AC240TM-R3-10
Also known as OSCM; conductive probe with visible apex tip for electrical measurement.
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| AC240TM-R3-10 | k:2N/m; f:70kHz; Tip Radius:25nm; - CONDUCTIVE AFM; Reflex coating:Al; Tip coating:Ti/Pt; Si probe;10/box |
each | $340.00 |
AC200TS-R3-10
Silicon probe with visible apex tip for soft tapping, force modulation, or bimodal imaging on medium to hard samples.
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| AC200TS-R3-10 | k:9N/m; f:150kHz; Tip Radius:7.0nm; - TAPPING MODE; Reflex coating:Al; Si probe;10/box |
each | $300.00 |
AC160TS-R3-10
Also known as OTESPA; silicon probe with visible apex tip for tapping mode.
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| AC160TS-R3-10 | k:26N/m; f:300kHz; Tip Radius:7.0nm; - TAPPING MODE; Reflex coating:Al; Si probe;10/box |
each | $300.00 |
AC240TS-R3-10
Also known as OLTESPA; medium soft cantilever for topgraphy and viscoelasticity of soft samples.
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| AC240TS-R3-10 | k:2N/m; f:70kHz; Tip Radius:7.0nm; - TAPPING MODE; Reflex coating:Al; Si probe;10/box |
each | $300.00 |

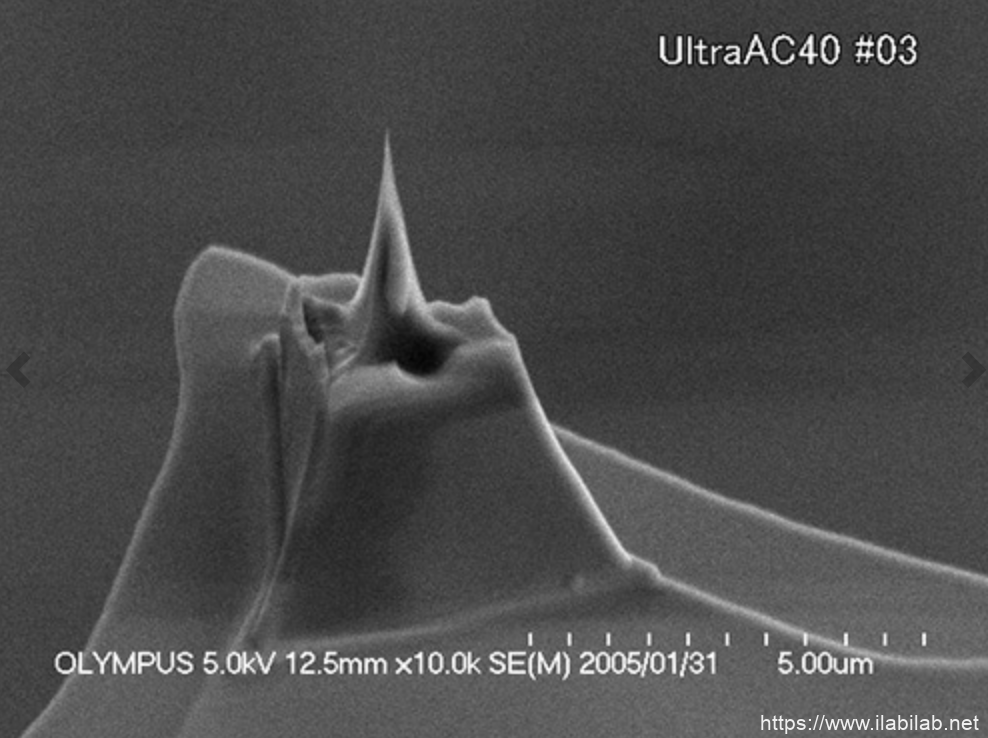

BL-AC40TS-10
BioLever Mini: Oxidation sharpened tip apex yields sharp high aspect ratio silicon probe for higher speed imaging of bio samples in liquid.
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| BL-AC40TS-10 | k:0.09N/m; f:110kHz; Tip Radius:8nm; - TAPPING MODE; Reflex Coating:Cr/Au; Si probe;10/box |
each | $700.00 |

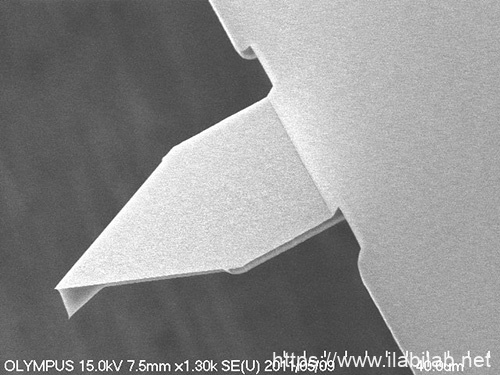

BL-AC55TS-10
High frequency silicon probe with low thermal noise and visible apex tip for fast scanning and high-resolution imaging.
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| BL-AC55TS-10 | k:85N/m; f:1600kHz; Tip Radius:7nm; - TAPPING MODE; Reflex Coating:Cr/Au; Si probe;10/box |
each | $550.00 |
